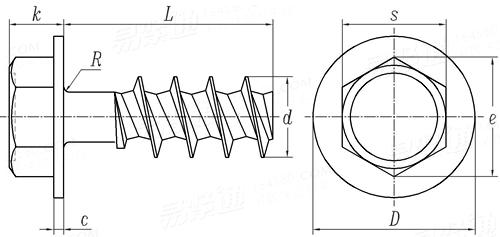

六角头带介自攻螺钉【PT-K 螺纹】 YJT 4064 (WN1447C)

选择规格尺寸点击↓

100

尺寸单位: mm

企标YJT 4064 (WN1447C) YJT4064 4064YJT 六角头带介自攻螺钉【PT-K 螺纹】

扫一扫分享

公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹规格

100

d
s	最小值
	最大值
e	最小值
k
D
c
R

3	3.5	4	4.5	5	6	7	8	10
4.82	5.32	5.32	5.32	6.78	7.78	7.78	9.78	12.73
5	5.5	5.5	5.5	7	8	8	10	13
5.4	5.96	5.96	5.96	7.59	8.71	8.71	10.95	14.26
2.3	2.8	2.8	3.2	3.5	4.2	5	6	7
6.5	7	8	9	10	12	14	16	18
0.6	0.7	0.8	0.8	0.8	1	1.2	1.2	1.5
0.4	0.4	0.5	0.5	0.6	0.8	0.9	1	1

千件钢制重≈kg

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
