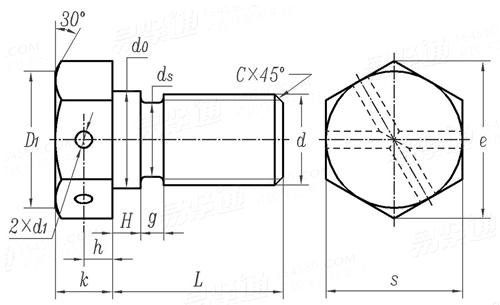

JB /ZQ 4714 - 2006 Screws for baffle on shaft


Unit: 毫米(mm)
L
Thread Size
d
M6 M10 M12
s max
min
k Nominal Size
max
min
h
H
g
d0
ds
d1
C
e min
10 16 18
9.64 15.57 17.57
4 6.4 7.5
3.62 5.95 7.05
4.38 6.85 7.95
2 3.2 3.7
3 3 3
2 3 4
6 11 13
4.5 7.5 9.5
1.6 2 2
0.7 1 1.5
10.89 17.59 19.85
per 1000 units ≈ kg(7.85kg/cm3)
- - -
