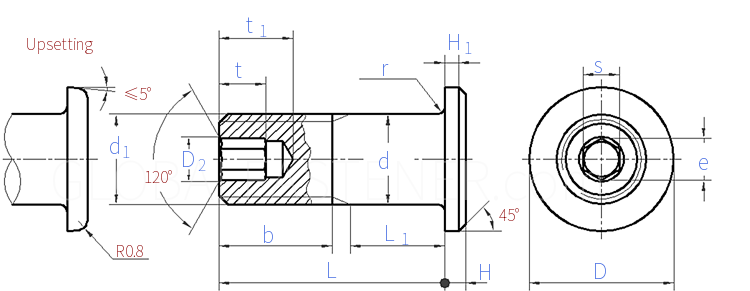

HB 5627 - 1983 Hi-lock Bolts, Prodruding Head, Shear, Shank Tolerance r6

Message Error Correction 中文版

Unit: 毫米(mm)
L
Nominal Diameter
d
5 6 8
d max
min
d1
D max=nominal size
min
e ≈
D2
H max=nominal size
min
H1
b Ref.
t min
t1 max
s Nominal Size
max
min
r ±0.2
5.023 6.023 8.028
5.015 6.015 8.019
M5 M6 M8×1
8 9.5 12.2
7.85 9.35 12.02
2.3 2.9 3.5
2.5 3.1 4
1.5 1.8 2
1.3 1.6 1.8
0.8 1 1.4
7.5 8 11
2.5 3.2 4
4 5 6
2 2.5 3
2.06 2.58 3.1
2.02 2.52 3.02
0.5 0.5 0.8
L1, max
- - -
L1, min
- - -
per 1000 units ≈ kg(7.85kg/cm3)
- - -
①,When L exceeds 154mm, a gap of 2mm should be taken between them.
②,Material: ML30CrMnSiA; Heat treatment: σb=1175±100MPa; Surface treatment: Oxidation.
