TB /T 808 - 1991

Message Error Correction 中文版

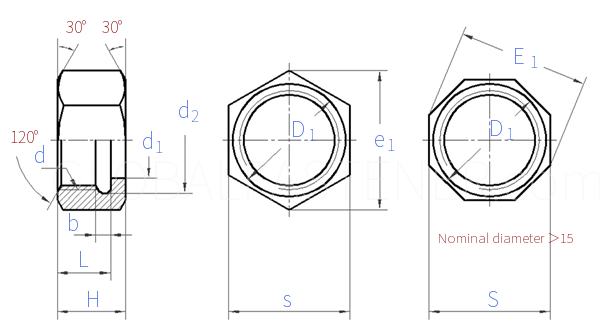

Unit: 毫米(mm)
Inside Nominal Diameter
8 10 15
d
L
d1 min=nominal size
max
d2
H
b
s max=nominal size
min
S max=nominal size
min
e1
E1
D1 ≈
per unit≈kg
G3/4 G7/8 G1-1/8
14 14 18
22 25 32
22.33 25.33 32.39
27 32 39
18 18 22
4 4 6
32 36 46
30.4 34.4 43.4
/ / /
/ / /
36.9 41.5 53.1
/ / /
0.95 0.95 0.95
0.052 0.066 0.112
①,Material：KTH300-06 (GB 9440)；QT450-10 (GB 1348)。
