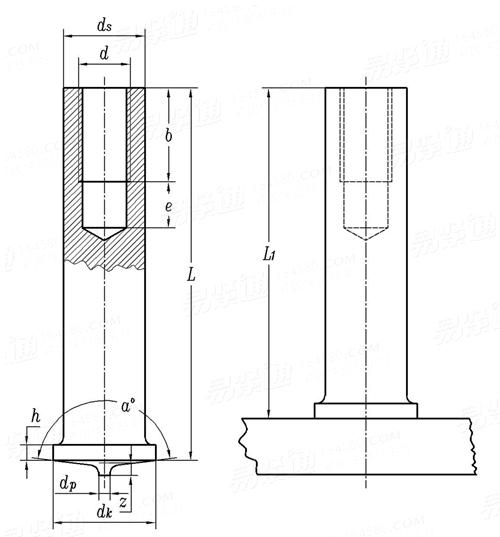

ISO 13918 (IT) - 1998 Stud with internal thread for arc stud welding(IT)


Unit: 毫米(mm)
Weight Calculator
Thread Size
d
M3 M4 M5
P Pitch
ds Nominal Size
max
min
b min
max
e min
dk Nominal Size
max
min
dp Nominal Size
max
min
z Nominal Size
max
min
h min
max
0.5 0.7 0.8
5 6 7.1
5.1 6.1 7.2
4.9 5.9 7
5 6 7.5
5.5 6.5 8
2.5 3 3
6.5 7.5 9
6.7 7.7 9.2
6.3 7.3 8.8
0.75 0.75 0.75
0.83 0.83 0.83
0.67 0.67 0.67
0.8 0.8 0.85
0.85 0.85 0.9
0.75 0.75 0.8
0.8 0.8 0.8
1.4 1.4 1.4
Alternative history ISO 13918(IT) - 1998 ISO 13918(IT) - 2017
