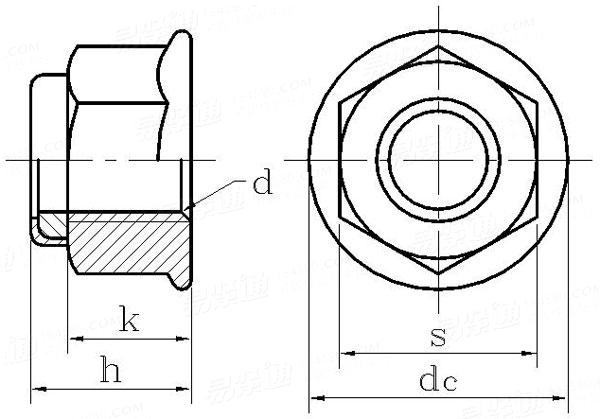

NF E 25-507 - 1998 (R2004) Prevailing Torque Type Hexagon Flange Nuts With Non-Metallic Insert


Unit: 毫米(mm)
Weight Calculator
Nominal Diameter
d
M8 M10 M12
P Pitch(Fine thread)
Pitch(Very fine thread)
dc max
h max
min
k min
s max
min
1 1.25 1.5
/ 1 1.25
17.9 21.8 26
11.1 13.5 16.1
10.4 12.8 15.4
7.6 9.6 11.6
13 16 18
12.73 15.73 17.73
