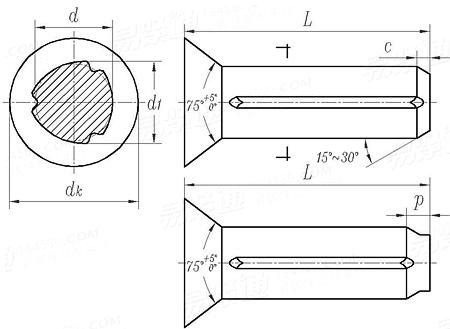

ASME/ANSI B 18.8.100M (B18.8.9M T9) - 2000 (R2005) Metric Series, Grooved Pins with Countersunk Head, TYPE 47-1 TYPE 47-2 [Table 9]

Weight Calculator Message Error Correction 中文版

Unit: 毫米(mm)
Weight Calculator
L
Nominal Diameter
d
1.4 1.6 2
d max
min
dk max
min
c Ref.
P Ref.
d1 Tol.
1.4 1.6 2
1.35 1.55 1.95
2.7 3 3.7
2.3 2.6 3.3
0.2 0.2 0.25
0.42 0.48 0.6
0.04 0.04 0.05
d1
- - -
