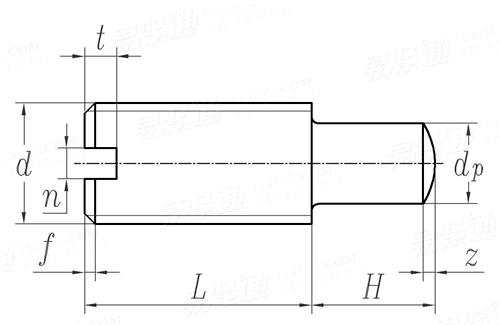

DIN 926 - 2003 Slotted Set Screws With Dog Point


Unit: 毫米(mm)
Thread Size
d
M1 M1.2 M1.4
P Pitch
dp max=nominal size
min
f max
n Nominal Size
max
min
t max
min
z
0.25 0.25 0.3
0.5 0.7 0.8
0.475 0.675 0.775
0.4 0.4 0.5
0.2 0.2 0.2
0.4 0.4 0.4
0.26 0.26 0.26
0.52 0.52 0.63
0.4 0.4 0.48
0.1 0.15 0.2
Alternative history DIN 926 - 1986 DIN 926 - 2003
