铝帽铝芯封闭型圆头抽芯铆钉 DIN EN ISO 15975 - 2003

选择规格尺寸点击↓

Φ3.2

Φ4

Φ4.8

尺寸单位: mm

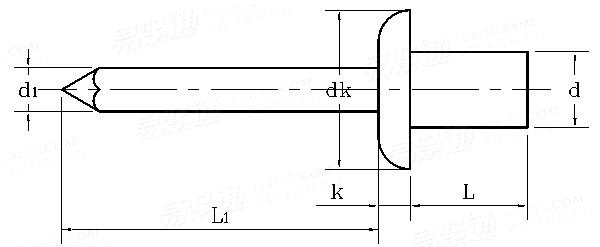

德标DIN EN ISO 15975 - 2003 DIN EN ISO1597 铝帽铝芯封闭型圆头抽芯铆钉

扫一扫分享

单重计算公差

公称直径
d

Φ3.2

Φ4

Φ4.8

d	最大值
d	最小值
d_k	最大值
d_k	最小值
k	最大值
d₁	最大值
L₁	最小值

3.28	4.08	4.88
3.05	3.85	4.65
6.7	8.4	10.1
5.8	6.9	8.3
1.3	1.7	2
1.85	2.35	2.77
25	25	27

替代列表

暂无

等效标准

国标 GB	国际 ISO	德标 DIN
GB /T 12615.3 修改采用 ISO 15975:2002	ISO 15975	DIN EN ISO 15975

以上有部分标准可能为近似等效，如有异议以标准原件为准

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

注：技术数据仅供参考，请以官方原件为准！
