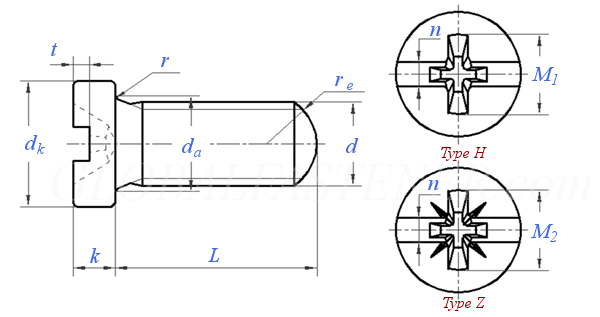

JB /T 14726 - 2024 Complex Groove Cheese Head Screws with Rounded End

Message Error Correction 中文版
机械行业JB /T14726 - 2024 JB14726 14726JB 复合槽圆柱头球面端螺钉

Unit: 毫米(mm)
L
Thread Size
d
M2.5 M3 M3.5
P pitch
dk max
min
da max
k max
min
r min
n max
min
t max
min
re Nominal Size
max
min
Socket No.
M1 Ref.
Penetration depth Type H min
max
M2 Ref.
Penetration depth Type Z min
max
0.45 0.5 0.6
3.9 4.5 5.1
3.72 4.32 4.92
3.1 3.6 4.1
2 2.2 2.4
1.75 1.95 2.15
0.1 0.1 0.1
0.8 1 1
0.6 0.8 0.8
0.95 1.15 1.15
0.65 0.85 0.85
1.8 2.2 2.5
2 2.4 2.7
1.6 2 2.3
1 1 1
2.7 2.9 2.9
1.25 1.4 1.4
1.55 1.8 1.8
2.5 2.8 2.8
1.22 1.47 1.47
1.47 1.73 1.73
per 1000 units ≈ kg(7.85kg/cm3)
- - -
