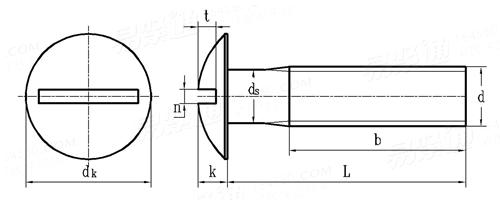

IS 8822 - 1978 Slotted Mushroom Head Roofing Bolts

Unit: 毫米(mm)

Thread Size
d

M10

d	max
d	min
n	max
n	min
k	Nominal Size
	max
	min
d_k	Nominal Size
	max
	min
t	max
t	min

6.48	8.58	10.58
5.52	7.42	9.42
1.8	1.8	2.8
1.6	1.6	2.5
4	5	6
4.375	5.375	6.375
3.625	4.625	5.625
13	16	20
13.55	16.55	20.65
12.45	15.45	19.35
2.1	2.6	3
1.6	2	2.4

①,L (js17)：12, 16, 20, 25, 30, 40, 45, 50 and if required, up to 300 in steps of 10 mm.
②,b：Bolts up to and Including 80 mm long shall be threaded up to head. Bolts over 80 mm long shall have a nominal thread length of 80 mm.
