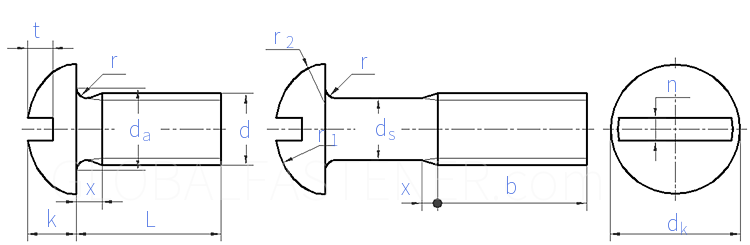

CNS 9671 - 1988 Slotted Pan Head Screws


Unit: 毫米(mm)
Weight Calculator
Thread Size
d
M1 M1.2 (M1.4)
P Pitch
dc max=nominal size
min
k Nominal Size
max
min
n max
min=nominal size
t Nominal Size
max
min
b
0.25 0.25 0.3
2 2.3 2.6
1.7 2 2.2
0.8 0.9 1
0.9 1 1.1
0.7 0.8 0.9
0.42 0.42 0.42
0.32 0.32 0.32
0.45 0.5 0.6
0.55 0.6 0.7
0.35 0.4 0.5
6 6 8
