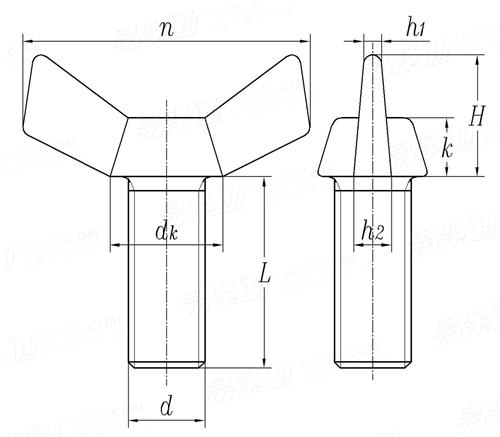

JIS B 1184 - 2010 Wing Screws-Square Wing


Unit: 毫米(mm)
Thread Size
d
M3 M4 M5
dk min
k min
n Nominal Size
max
min
H Nominal Size
max
min
h1 max
h2 max
6.5 6.5 8
3 3 4
17 17 21
18.5 18.5 22.5
15.5 15.5 19.5
9 9 11
10.5 10.5 12.5
7.5 7.5 9.5
3 3 3.5
4 4 4.5
Alternative history JIS B 1184 - 1994 JIS B 1184 - 2010
