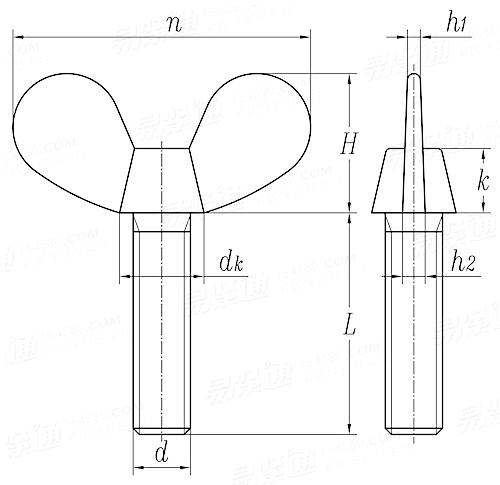

JIS B 1184 - 2010 Wing Screws - Round Wings


Unit: 毫米(mm)
Thread Size
d
M2 M2.2 M2.5
dk min
k min
n Nominal Size
max
min
H Nominal Size
max
min
h1 max
h2 max
4 4 5
2 2 3
12 12 16
13.5 13.5 17.5
10.5 10.5 14.5
6 6 8
7.5 7.5 9.5
4.5 4.5 6.5
2.5 2.5 2.5
3 3 3
Alternative history JIS B 1184 - 1994 JIS B 1184 - 2010
