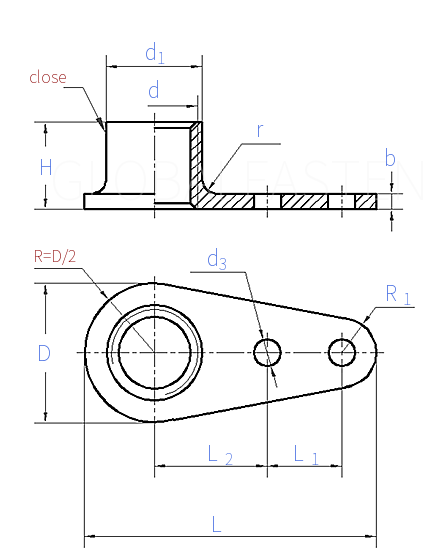

GB 929 - 1988 Self-Locking Nuts, Singlelug, Anchor

Unit: 毫米(mm)

Nominal Diameter
d

d₁	max=nominal size
	min
d₃	min=nominal size
	max
H	Nominal Size
	max
	min
b	min=nominal size
	max
D	max=nominal size
	min
R₁	max=nominal size
	min
L₂	Nominal Size
	max
	min
L₁	Nominal Size
	max
	min
L	Ref.
r
per 1000 units≈kg

3.7	4.8	5.8
3.64	4.74	5.74
2.6	2.6	2.6
2.72	2.72	2.72
4	4.5	5
4.09	4.59	5.09
3.91	4.41	4.91
0.8	0.9	1
1.05	1.15	1.25
6	8	8
5.7	7.64	7.64
3	3	3
2.75	2.75	2.75
6	8	8
6.2	8.2	8.2
5.8	7.8	7.8
6.5	6.5	6.5
6.7	6.7	6.7
6.3	6.3	6.3
18.5	21.5	21.5
0.8	0.8	1
0.676	1.082	1.233
