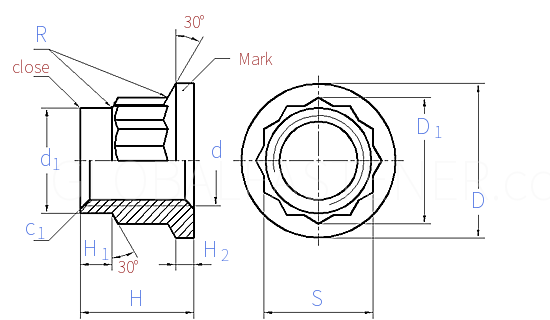

HB 8383 - 2013 Self-Locking Nuts, Double, Hexagon, MJ Thread, GH4738


Unit: 毫米(mm)
Nominal Diameter
d
MJ8
×1 4H5H
MJ10
×1.25 4H5H
D1
D
d1
H
H1
H2 Nominal Size
max
min
R Nominal Size
max
min
S max=nominal size
min
per 1000 units≈g
11.5 13.86
13 17
9.3 11.6
12 12.5
3.1 3.5
2 2
2.2 2.2
1.8 1.8
0.5 0.5
0.7 0.7
0.3 0.3
10 12
9.85 11.82
5.526 8.635
