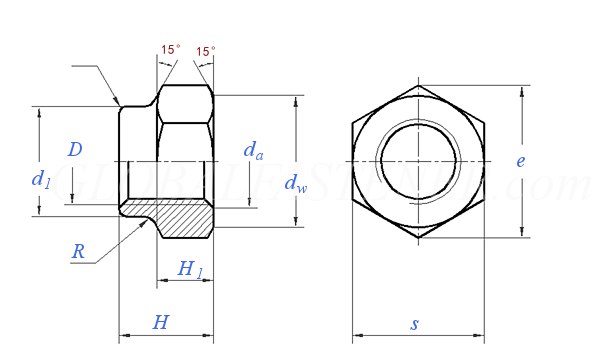

QJ 3243.1 - 2005 GH2132 Hexagonal Self-locking Nuts


Unit: 毫米(mm)
Thread Size
D
M5 M6 M8
d1 Ref.
s max
min
e Ref.
H Nominal Size
max
min
H1 Nominal Size
max
min
D Ref. max
min
dw min
R
per 1000 units≈kg
6 7.1 9.6
8 10 12
7.85 8.85 11.82
8.87 11.05 13.25
6 7 8.5
6.18 7.18 8.68
5.82 6.82 8.32
3 3.5 4.5
3.15 3.65 4.65
2.85 3.35 4.35
5.8 7.1 9.1
5.2 6.3 8.3
7 9 10.6
1 1 1
1.1 2.06 3.64
