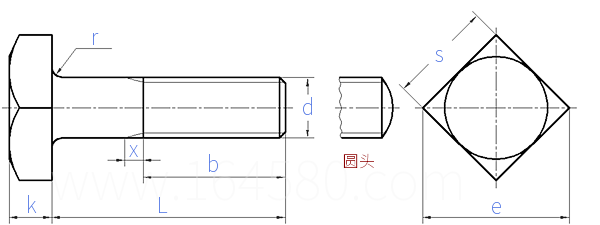

一般用方头螺栓 CNS 3136 - 1981

选择规格尺寸点击↓

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

括号内尺寸为非优选

尺寸单位: mm

台湾CNS 3136 - 1981 CNS3136 3136CNS 一般用方头螺栓

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

公称长度L 注:选择后获得 螺纹长度

螺纹规格
d

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

P	螺距
d_s	公称
	最大值
	最小值
k	公称
	最大值
	最小值
s	最大值
s	最小值

1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
6	8	10	12	14	16	18	20	22	24
6.6	8.7	10.7	12.9	14.9	16.9	18.9	20.95	22.95	24.95
5.85	7.8	9.8	11.8	13.8	15.8	17.8	19.65	21.65	23.65
4	5.5	7	8	9	10	12	13	14	15
4.6	6.1	7.8	8.8	9.8	10.9	12.9	13.9	14.9	15.9
3.4	4.9	6.2	7.2	8.2	10.1	11.1	12.1	13.1	14.1
10	13	17	19	22	24	27	30	32	36
9.4	12.3	16.3	18.2	21.2	23.2	26.2	29.2	31	35

螺纹长度b

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求
