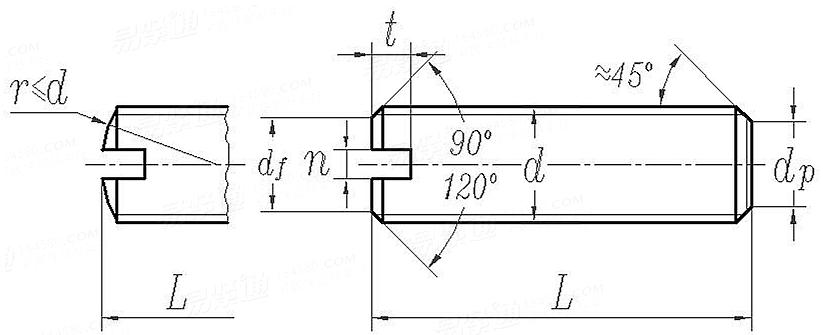

GOST 1477 - 1993 Flat-point Straight Slotted Set Screws. Product Grades А and В

Unit: 毫米(mm)

Thread Size
d

M1.2

M1.6

P	pitch
d_p	min
d_p	max
n	Nominal Size
	min
	max
t	min
t	max

0.25	0.25	0.35
0.35	0.35	0.55
0.6	0.6	0.8
0.2	0.2	0.25
0.26	0.26	0.31
0.4	0.4	0.45
0.4	0.4	0.56
0.52	0.52	0.74

per 1000 units ≈ kg(7.85kg/cm3)

①,To determine the mass of screws made from other materials, the values given in the table should be multiplied by the following coefficients: 0.356 — for aluminum alloy; 0.97 — for brass; 1.08 — for bronze."
