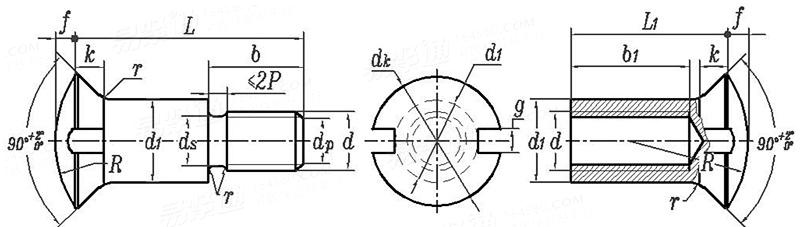

NF F 03-006 (notch) - 1983 铁路车辆 A级沉头侧切口螺钉/螺母

尺寸单位: mm

法国NF F03-006 (notch) - 1983 NF03-006 03- 铁路车辆 A级沉头侧切口螺钉/螺母

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照

螺纹尺寸
d

P	螺距
d₁	最大值
d₁	最小值
d_k	最大值
d_k	最小值
k	最大值
k	最小值
f	≈
d_s	最大值
d_s	最小值
b	最大值
b	最小值
b₁	最大值
b₁	最小值
d_p	最大值
d_p	最小值
g	最大值
g	最小值
R	≈
r	最大值
L₁	最大值
L₁	最小值

0.5	0.7	0.8	1	1.25
5	6	7	8	10
4.88	5.88	6.5	7.5	9.5
7.3	9.3	11.3	13.3	17
6.9	8.9	10.9	12.9	16.5
1.6	2.2	2.8	3.2	4.2
/	/	/	2.8	3.8
0.8	1.2	1.4	1.7	2
3	4	5	6	8
2.5	3.3	4.2	5.4	6.8
5.3	7.36	8.36	9.36	11.43
5	7	8	9	11
6	8.5	10	11.5	14
5.7	8.14	9.64	11.07	13.57
2	2.5	3.5	4	5.5
1.75	2.25	3.2	3.7	5.2
1.75	1.75	2.25	2.75	3.25
1.5	1.5	2	2.5	3
8.5	9.5	12	13.5	19
0.8	1	1.3	1.5	2
9.22	11.27	13.27	15.27	19.33
9	11	13	15	19

Clamping

技术条件和引用标准

材料

钢

不锈钢

有色金属

螺纹	公差
	标准
机械性能	等级
	标准
公差	产品等级
	标准
表面处理

6H/6g
NF E 03-001，NF E 03-014
螺钉：6.8 螺母：6	A2-70	协议
螺钉：NF E 25-100 螺母：NF E 25-400
A
NF E 27-021
无涂层电镀：NF E 27-016 其他涂层：E 27-018	不经处理 Clean and bright	协议

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
