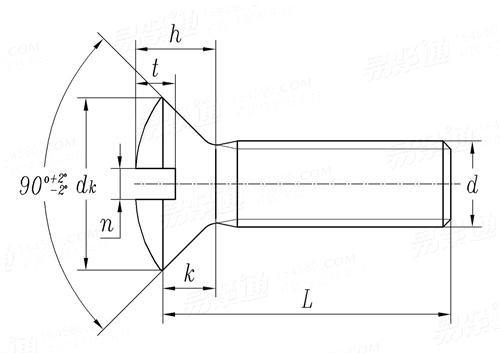

90°开槽半沉头螺钉 HB 1- 209 - 1995

选择规格尺寸点击↓

M1.4

M1.6

M2.5

尺寸单位: mm

航空HB 1-209 - 1995 HB209 209HB 90°开槽半沉头螺钉

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹规格
d

M1.4

M1.6

M2.5

P	螺距
k	参考
h	最大值
h	最小值
d_k	最大值
d_k	最小值
n	最大值
n	最小值
t	最大值
t	最小值

0.25	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1
0.7	1	1	1.3	1.4	1.7	2.2	2.5	3
0.95	1.5	1.5	1.8	2.1	2.4	3.1	3.6	4.3
0.7	1.25	1.25	1.55	1.85	2.15	2.8	3.3	4
2.2	3.2	3.4	4.4	5	6	8	9.5	11.5
1.9	2.9	3.1	4	4.7	5.6	7.5	9	11
0.4	0.5	0.5	0.6	0.7	0.9	1.1	1.3	1.6
0.3	0.4	0.4	0.5	0.6	0.8	1	1.2	1.5
0.65	0.9	0.9	1	1.3	1.3	1.6	1.8	2.1
0.4	0.65	0.65	0.75	1.05	1.05	1.35	1.55	1.85

千件钢制重≈kg

①,黄铜螺钉的重量，可将相同尺寸钢螺钉重量乘以修正系数1.1。

技术条件和引用标准

材料
限用直径
热处理
表面处理
标记示例	d=M6,L=36mm
其他

ML25	38CrA	ML30CrMnSiA	H62、H62防磁
1~6	4~6	4~6	1~6
-	σ_b=1030±100	σ_b=1175±100	-
镀锌钝化	镀锌钝化	镀锌钝化	钝化
HB1-209G-M6*36	HB1-209H-M6*36	HB1-209M6*36	H62：HB1-209TA-M636 H62防磁：HB1-209TB-M636
破坏拉力按 HB1-217-95 技术条件按HB1-218-95

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
