眼镜框架用 - 开槽弧面半沉头螺钉 JIS B 1119 (1RFC) - 1986

选择规格尺寸 点击↓

M1 ×1.5

M1 ×1.8

M1.2 ×1.8

M1.2 ×2

M1.4 ×1.8

M1.4 ×2

M1.4 ×2.5

M1.4 ×2.8

M1.6 ×2.5

M1.6 ×2.8

(M1.7) ×2.5

(M1.7) ×2.8

M2 ×3

括号内尺寸为非优选

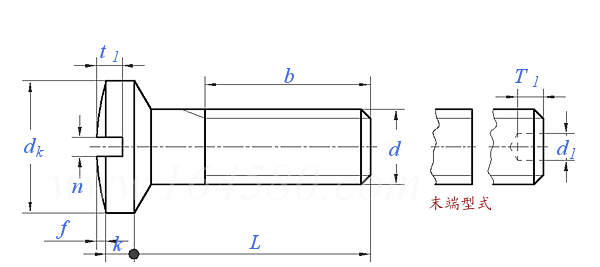

JIS B 1119 (1RFC) - 1986 眼镜框架用 - 开槽弧面半沉头螺钉

尺寸单位: mm
日标JIS B1119 (1RFC) - 1986 JIS1119 1119JI 眼镜框架用 - 开槽弧面半沉头螺钉
JIS B 1119 (1RFC) - 1986 眼镜框架用 - 开槽弧面半沉头螺钉
扫一扫分享
螺纹尺寸
d
M1
×1.5
M1
×1.8
M1.2
×1.8
M1.2
×2
M1.4
×1.8
M1.4
×2
M1.4
×2.5
M1.4
×2.8
M1.6
×2.5
M1.6
×2.8
(M1.7)
×2.5
(M1.7)
×2.8
M2
×3
P 螺距
dk 最大值
最小值
k 最大值
最小值
n 最大值
最小值
t1 公称
最大值
最小值
d1
T1
0.25 0.25 0.25 0.25 0.3 0.3 0.3 0.3 0.35 0.35 0.35 0.35 0.4
1.5 1.8 1.8 2 1.8 2 2.5 2.8 2.5 2.8 2.5 2.8 3
1.36 1.66 1.66 1.86 1.66 1.86 2.36 2.66 2.36 2.66 2.36 2.66 2.86
0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67
0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53
0.4 0.4 0.4 0.48 0.4 0.48 0.48 0.48 0.48 0.48 0.48 0.48 0.48
0.32 0.32 0.32 0.4 0.32 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
0.35 0.35 0.35 0.45 0.35 0.45 0.55 0.55 0.55 0.55 0.55 0.55 0.55
0.4 0.4 0.4 0.5 0.4 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6
0.3 0.3 0.3 0.4 0.3 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5
/ / / / 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 /
/ / / / 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 /
①,f:应为制造商可选。但是,当需要这些尺寸时,这些尺寸应在交付时由有关各方商定。
②,螺纹长度(b)应在交付时由相关各方商定。
注:技术数据仅供参考,请以官方原件为准!
