带圆孔的粗制方垫片 [Table 11] BS 3410 (-11) - 1961

选择规格尺寸 点击↓

3/8

3/8

1/2

1/2

5/8

5/8

5/8

3/4

3/4

3/4

3/4

7/8

7/8

1

1

1

1-1/4

1-1/4

同规格,其他部分尺寸不同

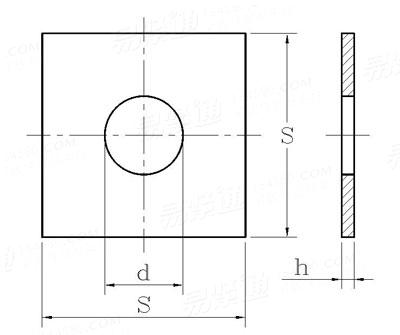

BS  3410 (-11) - 1961 带圆孔的粗制方垫片 [Table 11]

尺寸单位: 英寸(inch)
英标BS 3410 (-11) - 1961 BS3410 3410BS 带圆孔的粗制方垫片 [Table 11]
BS  3410 (-11) - 1961 带圆孔的粗制方垫片 [Table 11]
扫一扫分享
适用螺纹
3/8 3/8 1/2 1/2 5/8 5/8 5/8 3/4 3/4
d 0, + 1/32
s
h
7/16 7/16 9/16 9/16 11/16 11/16 11/16 13/16 13/16
1-1/2 2 1-1/2 2 2 3 3 2-1/2 3
0.128 0.128 0.128 0.128 0.128 0.192 0.252 0.128 0.192
适用螺纹
3/4 3/4 7/8 7/8 1 1 1 1-1/4 1-1/4
d 0, + 1/32
s
h
13/16 13/16 15/16 15/16 1-1/16 1-1/16 1-1/16 1-3/8 1-3/8
3 4 2-1/2 3 3 4 4 4 4
0.252 0.252 0.128 0.252 0.252 0.252 0.372 0.252 0.372
注:技术数据仅供参考,请以官方原件为准!
