淬硬钢工字钢用方斜垫圈 [Table 5] (ASTM F 436) ASME B 18.2.6 - 2010

选择规格尺寸 点击↓

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

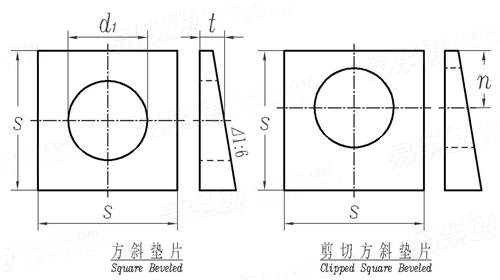

ASME B 18.2.6 - 2010 淬硬钢工字钢用方斜垫圈 [Table 5] (ASTM F 436)

尺寸单位: inch
美标ASME B18.2.6 - 2010 ASME18.2.6 18.2.6A 淬硬钢工字钢用方斜垫圈 [Table 5] (ASTM F 436)
ASME B 18.2.6 - 2010 淬硬钢工字钢用方斜垫圈 [Table 5] (ASTM F 436)
扫一扫分享
规格
1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
d1 最小值
最大值
s
t
n
0.531 0.688 0.813 0.938 1.125 1.25 1.375 1.5 1.625
0.563 0.72 0.845 0.97 1.188 1.313 1.438 1.563 1.688
1.75 1.75 1.75 1.75 1.75 2.25 2.25 2.25 2.25
0.313 0.313 0.313 0.313 0.313 0.313 0.313 0.313 0.313
0.438 0.547 0.656 0.766 0.875 0.984 1.094 1.203 1.313
①,材料和性能应符合ASTM F 436规定的要求。
替代列表
注:技术数据仅供参考,请以官方原件为准!
