高强度结构槽钢用方斜垫圈 CNS 4647 - 1983

选择规格尺寸 点击↓

13

17

21

23

25

28

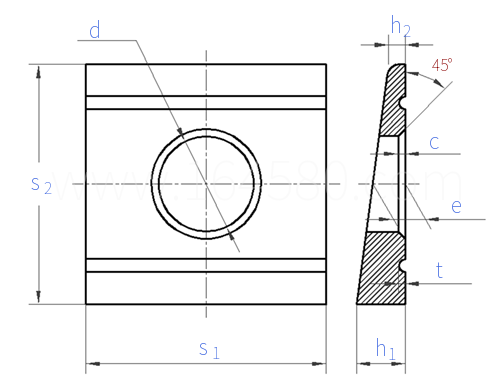

CNS  4647 - 1983 高强度结构槽钢用方斜垫圈

尺寸单位: mm
台湾CNS 4647 - 1983 CNS4647 4647CNS 高强度结构槽钢用方斜垫圈
CNS  4647 - 1983 高强度结构槽钢用方斜垫圈
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称直径
d
13 17 21 23 25 28
s1
s2
h1
h2
千件重kg
适用螺钉直径
26 32 40 44 56 56
30 36 44 50 56 56
4.9 5.9 7 8 8.5 8.5
2.5 3 3.5 4 4 4
18.3 31.5 56.3 81.1 128 114
12 16 20 22 24 27
注:技术数据仅供参考,请以官方原件为准!
