方形或D形斜垫圈 [Table 12] BS 3410 (-12) - 1961

选择规格尺寸 点击↓

3/8

1/2

5/8

3/4

7/8

1

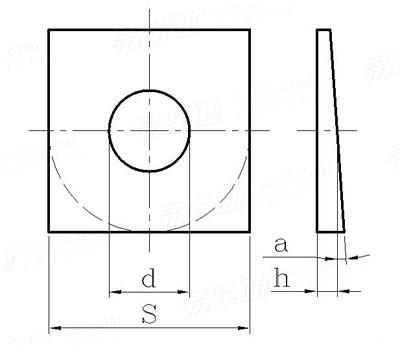

BS  3410 (-12) - 1961 方形或D形斜垫圈 [Table 12]

尺寸单位: 英寸(inch)
英标BS 3410 (-12) - 1961 BS3410 3410BS 方形或D形斜垫圈 [Table 12]
BS  3410 (-12) - 1961 方形或D形斜垫圈 [Table 12]
扫一扫分享
公称直径
3/8 1/2 5/8 3/4 7/8 1
d 0, +1/32
s
h 3°和5°
7/16 9/16 11/16 13/16 15/16 1-1/16
1 1-1/4 1-1/2 1-3/4 2 2-1/4
3/16 3/16 3/16 3/16 3/16 3/16
1/4 1/4 1/4 1/4 1/4 1/4
①,a=3°,5°,or 8°
注:技术数据仅供参考,请以官方原件为准!
